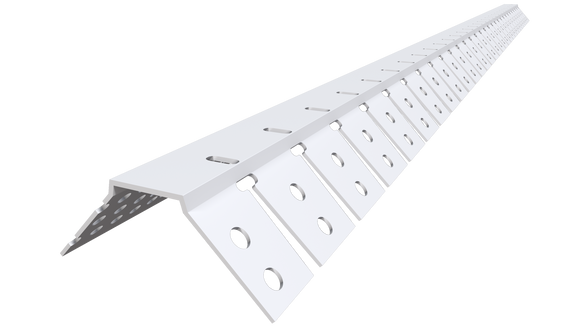

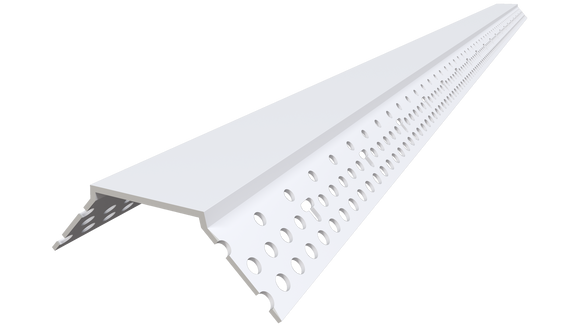

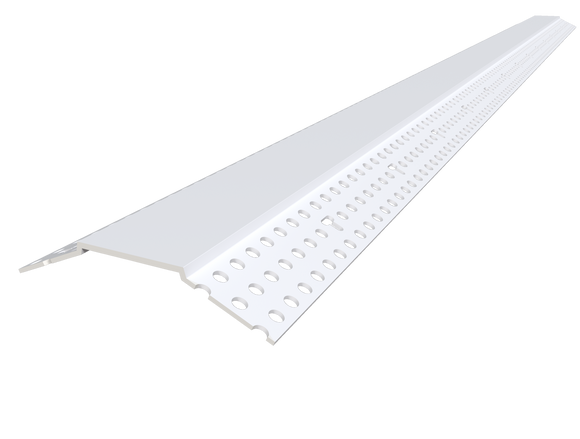

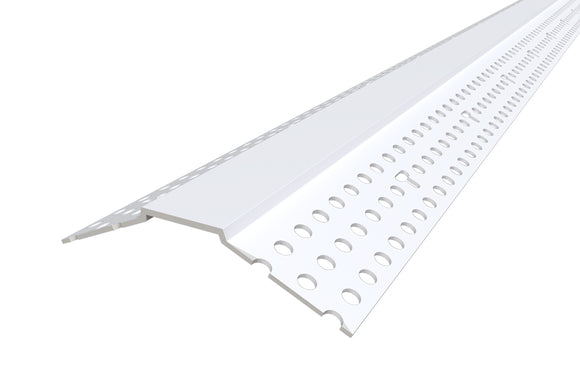

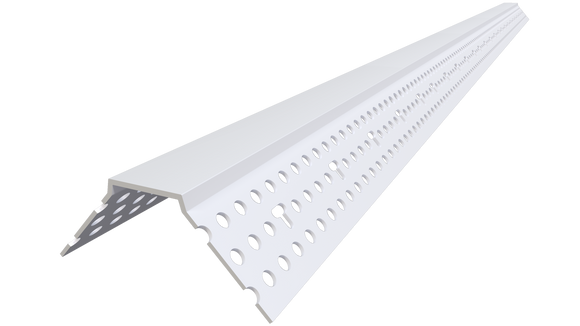

Trim-Tex Chamfer

Medium Chamfer Bead & Archway

• Also known as 350 Chamfer
• 3/4" wide chamfered edge
• 90° profile
• 1" wide mud legs
• Archway range: 14" minimum inside radius or 24" outside radius

• 30 pieces per box

Medium Outside Splayed Chamfer Bead

• Also known as 350 Chamfer
• 3/4" wide chamfered edge
• Formed for a true 135° but fits splayed outside corner angles from 120° to 140°
• 1" wide mud legs
• 20 pieces per box

Large Chamfer Bead & Archway

• 1-1/8" wide chamfered edge
• 90° profile
• 7/8" wide mud legs
• Archway range: 18" minimum inside radius or 24" outside radius
• 30 pieces per box

Large Outside Splayed Chamfer Bead

• 1 1/8" wide chamfered edge
• Formed for a true 135° but fits splayed outside corner angles from 120° to 140°
• 7/8" wide mud legs
• 20 pieces per box
