Trim-Tex Made For Movement

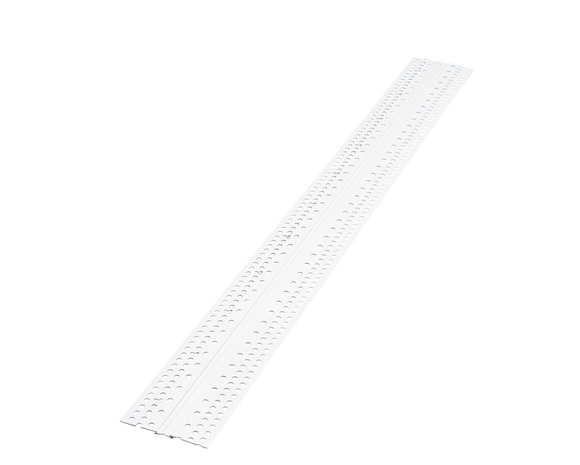

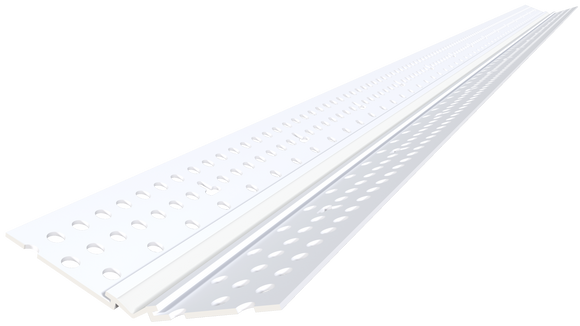

Magic Corner

• Use on any inside corner where movement is an issue to prevent cracking
• Eliminates edge cracking on all off-angle walls and vaulted ceilings, allowing up to ⅜” in controlled movement
• 1" wide mud legs
• 50 pieces per box / 200' per roll

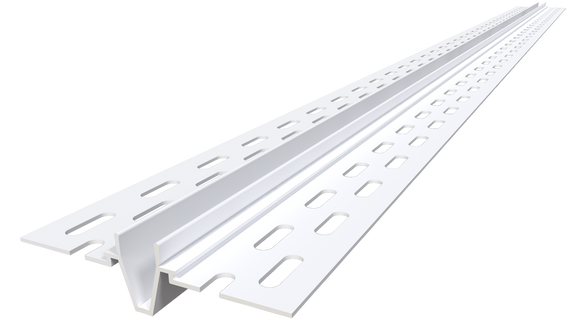

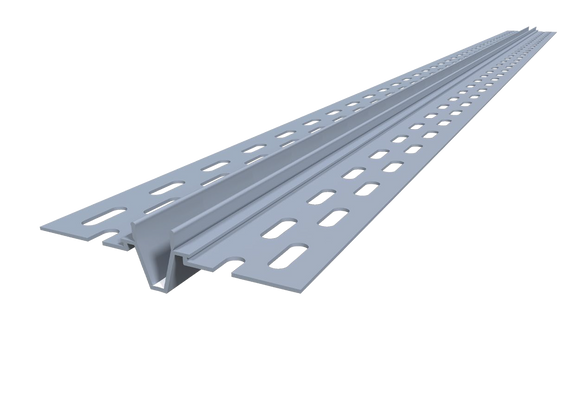

093V Expansion Joint

• Deep rigid PVC “V” is joined at the bottom with a flexible connection to accommodate ⅜” in building movement
• Tear off strips protect the center from joint compound, and act as guide for a taping knife
• Requires proper backing on fire rated walls

• 7/8" wide mud legs
• 20 pieces per box

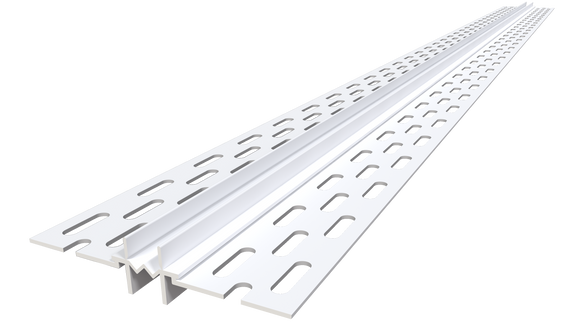

Hideaway Expansion

• Features a shallow profile while still accommodating up to 3/8" in building movement
• Tear off strips protect the center from joint compound, and act as guide for a taping knife
• Requires proper backing on fire rated walls
• 7/8" wide mud legs
• 25 pieces per box

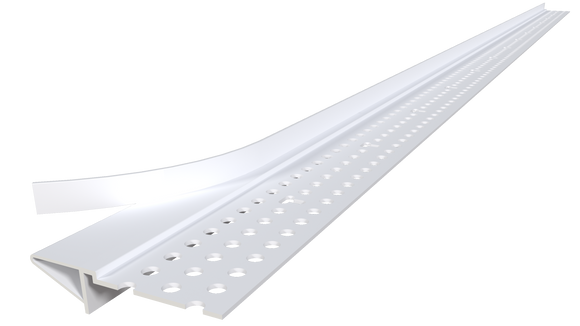

Deflection Bead

• Prevents inside corner cracking when installed against a ceiling or concrete deck that may be subject to movement
• A co-extruded flexible gasket compresses and expands during deflection
• Provides protection for up to 7/16″ of deflection
• Tear off strip leaves a clean finished edge
• Can be used in fire rated and non-fire rated assemblies

• 1" wide mud leg
• 48 pieces per box

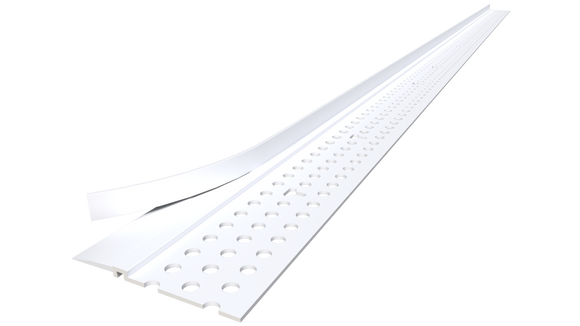

Flat Deflection Bead

• Prevents inside corner cracking when installed against a ceiling or concrete deck that may be subject to movement with backing material filling the head of wall gap
• A co-extruded flexible gasket compresses and expands up to 1/2" during deflection

• Tear off strip leaves a clean finished edge
• Can be used in fire rated and non-fire rated assemblies
• 1" wide mud leg
• 60 pieces per box

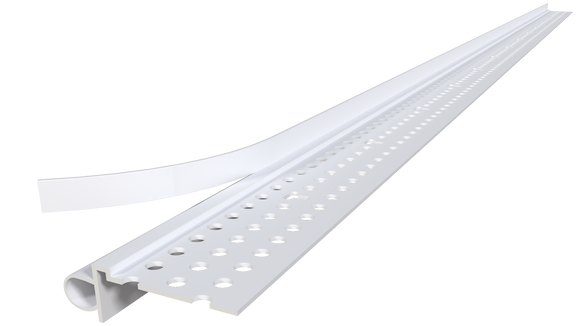

Super Seal Tear Away L Bead

• Use to seal around windows, doors, and where drywall butts up to a concrete wall
• Flexible bubble gasket compresses upon installation to form a permanent seal that reduces sound transmission, replaces acoustical caulk, and provides relief from the stresses of structural movement

• Attached tear away strip acts as a protective mask for joint compound
• 1" wide mud leg
• 25 pieces per box

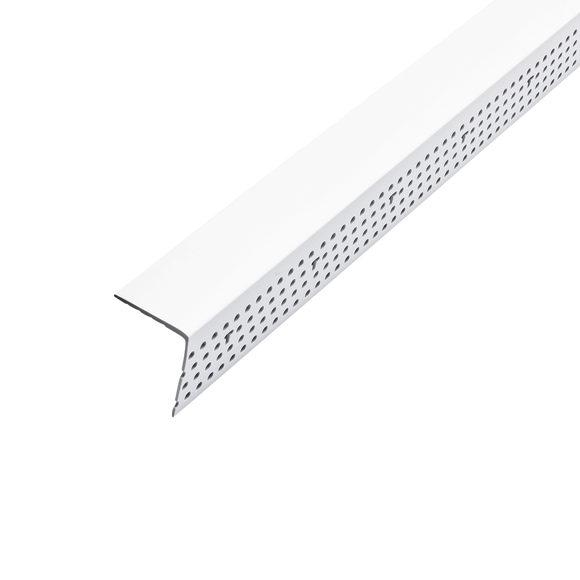

Truss Backing Angle

• Eliminates inside ceiling corner cracking due to truss uplift of interior partition walls
• Backing Angle may also be used where blocking is missing on inside corners
• 1 1/4" thick vinyl flange helps screws start easier

• 25 pieces per box
