Trim-Tex Code Compliance

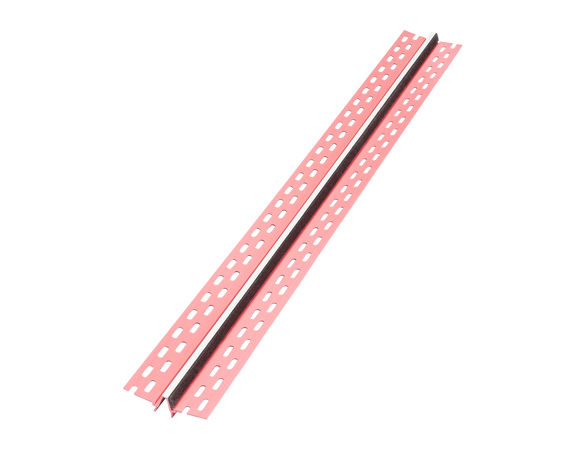

Fire Rated 093V Expansion

• Time saving single step installation. Use at wall or ceiling control joints in lieu of fire rated backing materials for 1-and 2-hour fire rated assemblies
• Features intumescent tape on one side of the expansion joint, that expands when exposed to heat, sealing the joint
• Allows for a full ⅜” in controlled movement
• Pink in color so it is easily identified by the inspector as a CAN/ULC certified fire-rated drywall accessory
• Tear away strips keep joint compound out of the center expansion control joint
• Can be used on wood or steel construction
• 7/8" wide mud legs
• 20 pieces per carton

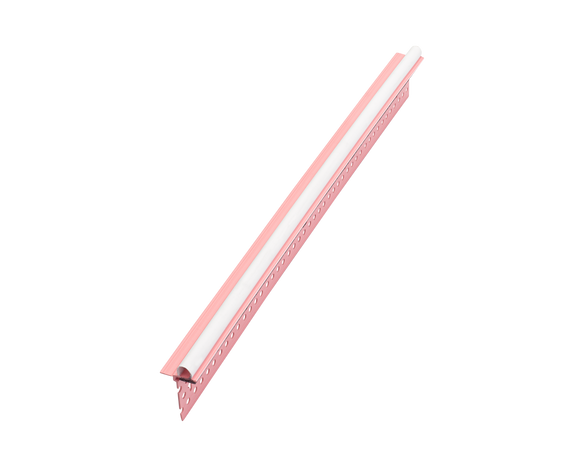

Fire Bead

• Best for bottom-wall and vertical joints in concrete assemblies where 1- and 2-hour fire-rating is needed for both dynamic and static joints
• 2 flexible fins provide 2 sealing points one against the concrete deck and one against the framing member. A hidden intumescent tape expands when activated by heat from fire
• Pink in color so it is easily identified by the inspector as a CAN/ULC certified fire-rated drywall accessory
• Provides a seal against uneven concrete and during deflection movement to prevent cracking of the finish at the head-of-wall detail. Best for when less than ¼” of movement protection is needed
• Product lasts the lifetime of the assembly as it will not shrink or harden over time
• Tear away strip for clean and easy installation
• 1" wide mud leg
• Can be installed post-drywall hanging
• 30 pieces per box (1 Hour) / 22 pieces per box (2 Hour)

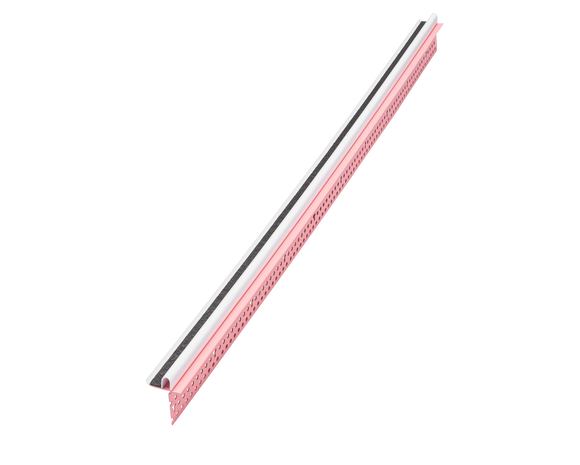

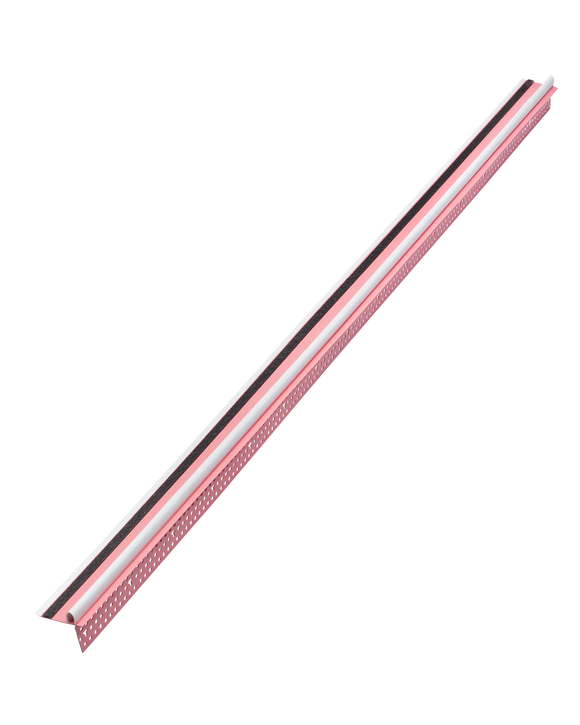

Hotrod XL

• Composite vinyl/intumescent firestopping accessory that is fully cured
• Features intumescent tape on one side of the expansion joint, that expands when exposed to heat, sealing the joint
• Accommodates a full ¾” of building movement
• Includes a 5/16” tear off leg that acts as a guide to apply joint compound without masking off adjoining surfaces
• 1-1/16" wide mud leg
• Made from rust proof, dent resistant PVC to reduce jobsite and handling damage

• Pink in color so it is easily identified by the inspector as a CAN/ULC certified fire-rated drywall accessory
• Can be used on wood or steel construction
• 12 pieces per box

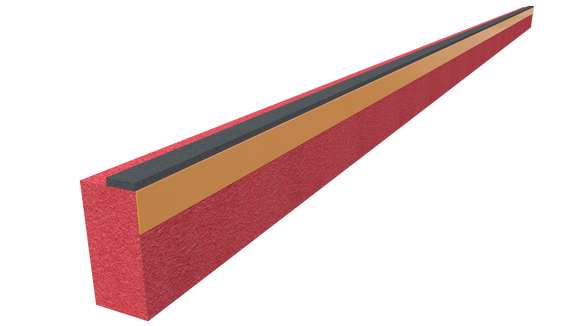

Hotrod Type-X

• A compressible intumescent firestopping that provides 1 and 2 hour fire-ratings for both dynamic and static joints on both concrete and fluted decks without spray over mineral wool (for both standard walls and shaft walls) and is sound tested according to ASTM E90, tested up to a STC 68.
• Red in color so it is easily identified by the inspector as a CAN/ULC certified fire-rated drywall accessory.
• Maintains flexibility for the life of the interior building joint and will not shrink or pull away or harden over time.
• Will resist oil, gasoline and most solvents.
• The material is odorless, will not stain, and the open cell composition prevents out-gassing.
• Product is designed for interior use.

• 200'/5 rolls of 40' (1 Hour) / 80'/4 rolls of 20' (2 Hour)

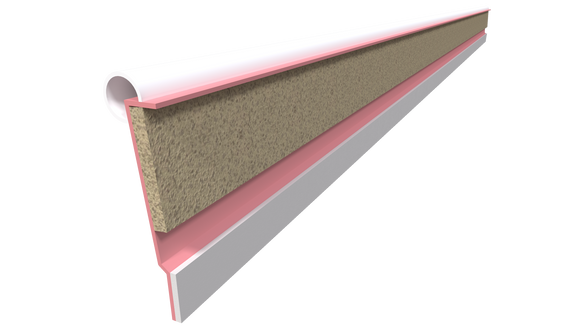

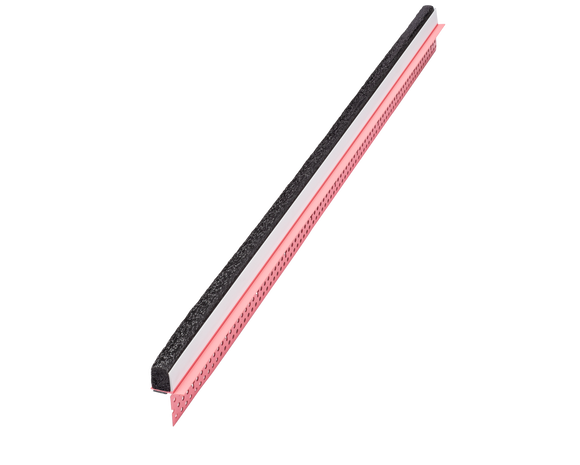

Fire Gasket

• Fire-rated composite vinyl intumescent accessory for dynamic and static joints
• Suitable for concrete and fluted deck assemblies (UL-2079 5th edition)
• Provides 1- and 2-hour fire ratings and an L-rating under 1 CFM
• Sound tested per ASTM E90 standards
• Pink in color so it is easily identified by the inspector as a CAN/ULC certified fire-rated drywall accessory
• Available in 0.5", 1" and 1.5" sizes for unrestricted movement
• Easy installation with factory-applied adhesive foam tape
• 3/8" hollow bubble gasket compresses to seal uneven surfaces
• Creates a durable, long-term seal for fire, smoke, and sound protection
• Resistant to damage—won’t delaminate, absorb water, shrink, or harden over time
• 50, 60, or 96 pieces per carton

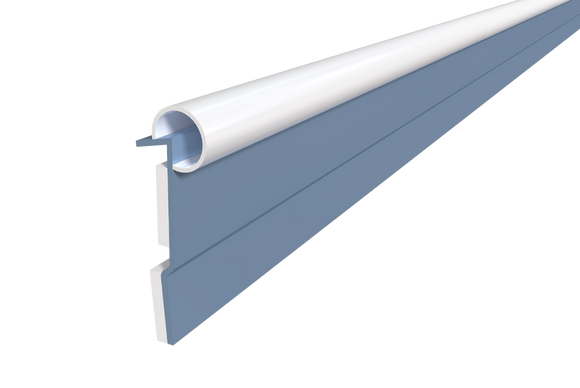

Sound Gasket

• A vinyl accessory that provides smoke and sound ratings for both dynamic and static joints
• The unique vinyl profile provides a bubble gasket seal along the inside track leg to prevent sound flanking along the track and framing screws
• Allows for up to 1" of building movement
• Made from rustproof, dent-resistant PVC to reduce jobsite and handling damage
• Installs fully cured and has no installation temperature or humidity restrictions
• Designed for interior use
• 60 or 96 pieces per box

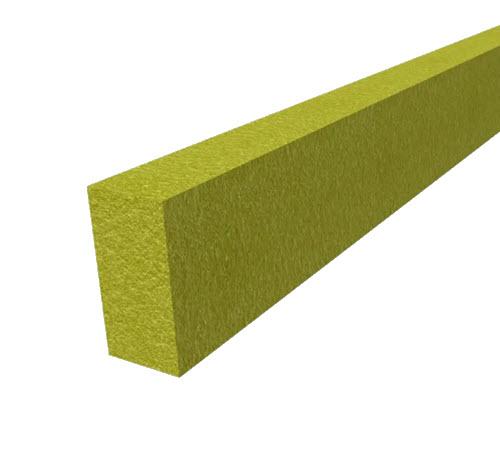

Smoke & Sound Stop

• A compressible rectangular foam that provides a flexible backing for smoke and sound abatement at interior building joints
• Sound tested according to ASTM E90
• Maintains flexibility for the life of the interior building joint and will not shrink or pull away or harden over time

• The material is odorless, will not stain, and the open cell composition prevents out-gassing
• Product is designed for interior use

• 1080' per roll

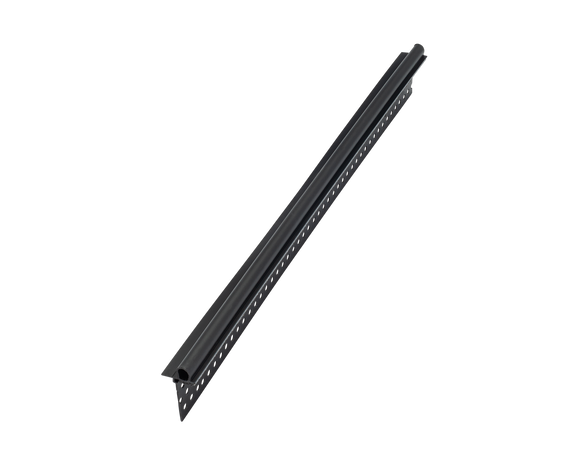

 Super Seal-X

• For a flawless finish that complies with recent building code requirements, the fire rated Super Seal-X is the quickest, easiest way to seal off window mullions from the spread of fire, smoke and sound.
• Its flexible bubble gasket forms a tight, consistent seal against uneven surfaces, and eliminates caulks while preventing unsightly cracks in these movement-prone areas.
• Available in two colors: pink for easier identification by code compliance inspectors, and black for a less noticeable aesthetic.
• This product is UL GREENGUARD Gold Certified.
• 30 pieces per box

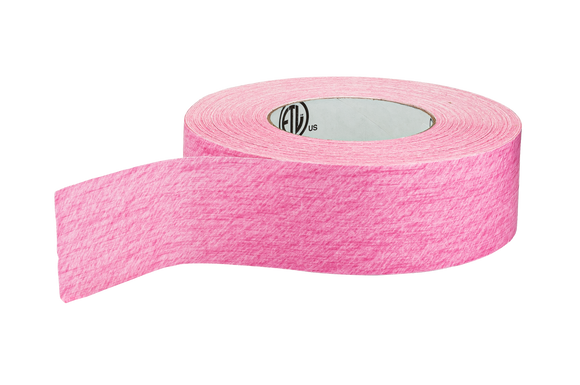

Fire Tape

• Quick, clean and fully code-compliant — no mud required!
• Fire Tape is the key to blazing-fast, fire-rated wall joints, ideal for a Level 1 finish (above ceiling grids, in shaftways, mechanical zones, etc.) in both residential and commercial builds.
• 1- and 2-hour rated for walls, ceilings and floors,
• Installs effortlessly for major time savings and a dust-free finish every time.
