DAVENTE Drop-In Top Flush Mount Floor Vent, 3" x 10" Duct Opening (WHITE)-1
DAVENTE Drop-In Top Flush Mount Floor Vent, 3" x 10" Duct Opening (WHITE)-2
DAVENTE Drop-In Top Flush Mount Floor Vent, 3" x 10" Duct Opening (WHITE)-3
DAVENTE Drop-In Top Flush Mount Floor Vent, 3" x 10" Duct Opening (WHITE)-4
DAVENTE Drop-In Top Flush Mount Floor Vent, 3" x 10" Duct Opening (WHITE)-5

DAVENTE Drop-In Top Flush Mount Floor Vent, 3" x 10" Duct Opening (WHITE)

Davente SKU: CB4892

Description

The DAVENTE Drop-In Top Flush Mount Floor Vent transforms a traditionally utilitarian feature into a statement of modern luxury. Expertly crafted from premium powder-coated steel and rigorously airflow-tested for optimal performance, this matte white magnetic vent cover blends sleek design with exceptional durability.

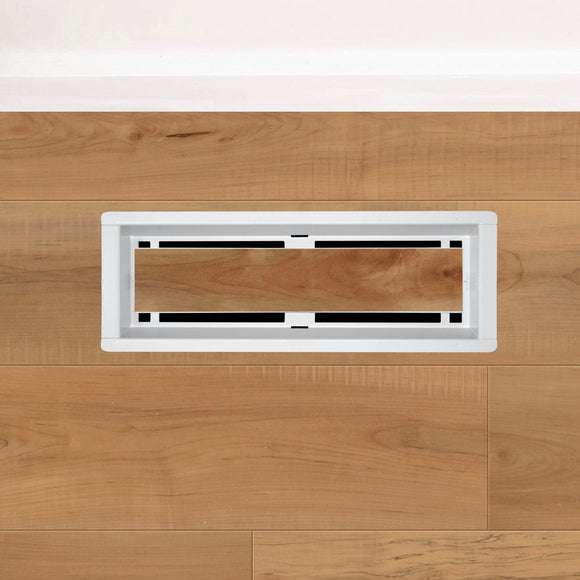

Designed for versatility, it can seamlessly integrate with your flooring for a clean, minimalist look or stand out as a subtle design accent. Its sophisticated aesthetic adapts effortlessly to a wide range of interior styles, allowing you to tailor the finish to your personal vision.

With a DIY-friendly installation process, simply drop the vent frame into your existing 3" x 10" floor duct opening.

Application
  • Designed for all flooring materials up to 3/4" thick.
  • All 3" x 10" ducts for porcelain/ceramic tile, marble, limestone, granite, carpet, vinyl, LVT, hardwood, engineered wood, cork and more.
  • Easily replace your existing plastic or metal vent with this modern and durable vent cover.
Key Features
  • CNC manufactured from heavy 18 gauge cold rolled steel.
  • Simply insert-cut flooring into a 1-11/16" x 8-3/4" rectangle.
  • 4 rare earth magnets (3/8" diameter x 1/8" thick).

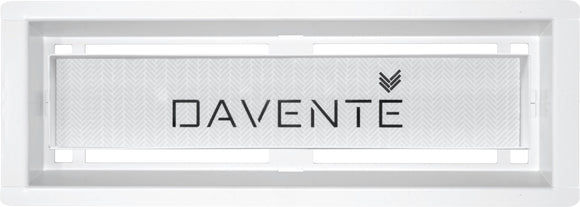

  • Includes a 6mm insert designed to sit under the tile, lifting the flooring to match the insert height.
  • Premium powder-coated steel.
  • Airflow tested for optimal performance.
  • DIY-friendly and easy to install.

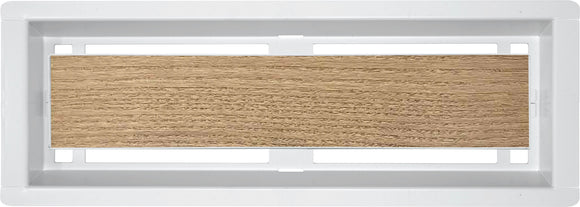

  • Easily bond the flooring material with silicone or similar adhesive.
  • Just Over 9.5 square inches of open area for air flow.
  • Adjustable metal diffuser plates.
  • Non-combustible.
  • Impact resistant.
  • Moisture and water resistant.
Sizing
Vent Cover/Floor Opening 3" x 10"
Slotted Openings 4 slots: 3-5/8" x 9/16"
4 slots: 1" x 3/8"
Overall Dimensions 4-3/4" x 10-3/4" x 1-1/16"
Open Vented Area 9.5 sq. inches
Product Weight 0.9 lbs.



Specs & Install

Airflow Data

Specification Sheet

Installation Instructions

Installation Video
